A70 SV
| A70 SV Specification | |
| Processor | 64 bits quad-core A53 ARM CPU |
| Memory | RAM: 1G, ROM: 8G |
| Operation System | Android 7.x secured operation system |
| Extensible Memory | Micro SD (TF) port, maximum 32 GB |
| Display Screen | 5 inches IPS capacitive touch screen. 1280x720 resolution. Supports E-signature |
| Keys |
3 physical keyboards: open/off , voice up, voice down 3 Touch keys: Menu, home, back |
| Pin Pad |
Built-in Pin pad. Optional pedestal for external Pin pad Confirms to ANSI X9.8/ISO9564, ANSI X9.9/ISO8731 standards Supports DES, 3DES, RSA, SHA-256, and AES algorithms Supports MK/SK, Fixed, and DUKPT security |
| Printer |
Built-in high speed thermal printer. Supports BT printingSpeed: >18 lines/sec Paper roll width: 58mm. Diameter: 40mm Trouble free printing guarantee: >100K times, >50km |
| Cameras |
Front camera: fixed focus, 2 mega-pixel; Rear camera: auto-zoom, 5 mega-pixel with flash |
| Contactless card reader (Optional) | 13.56MHz, supports ISO 14443, Type A/B |
| Audio system | Built-in speaker, buzzer, and microphone |
| Multimedia |
Supports 1080p video play, 720p video recording, front 2 mega-pixel and rear 5 mega-pixel photograph Supports audio play and voice recording |
| Indicator lights | 4 contactless indicator lights, 1 charging indicator light, and 1 active indicator light |
| SAM card reader | 1 PSAM slot and confirms to ISO7816 standard, optional another one |
| Wireless communication |
2G/3G network,4G is optional Supports DSDS, Supports data service, 2 SIM card slots WiFi 802.11a/b/g/n, supports 2.4G and 5G dual frequency BluetoothV4.0,vsupports BLE |
| GPS | Built-in GPS, supports A- GPS |
| Peripherals |
1 Micro USB OTG, supports charging, and conforms to USB 2.0 HS standard 1 DC power socket 1 piece 5-Pin Pedestal port |
| Battery | Removable Li-battery, 7.2V/2600mAh |
| Optional |
Pedestal, provides charging, extra serial and USB port, 1D or QR code reader |
| Certifications |
PCI PTS 5.x EMV L1 & L2 , EMV CL1 MasterCard PayPass VISA PayWave CCC |

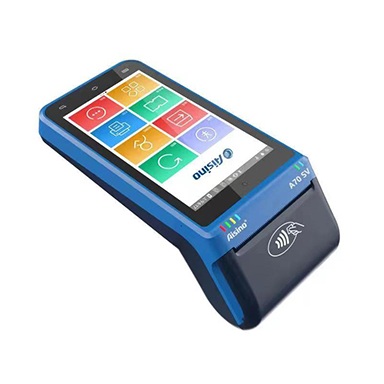

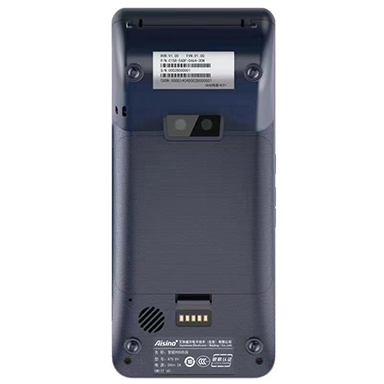

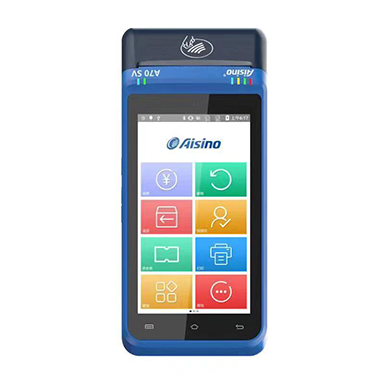

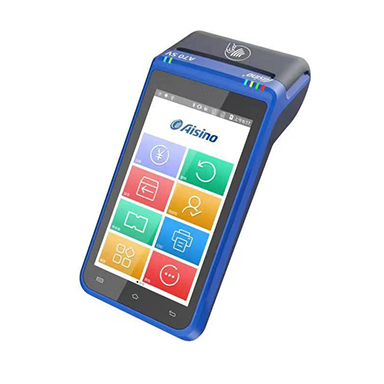

Product display
