SC-TVM01

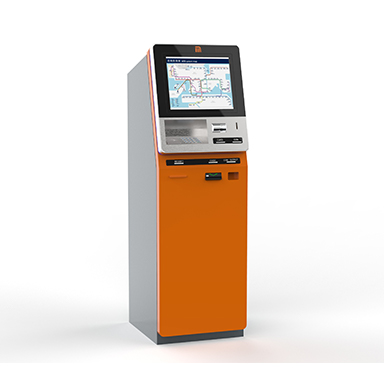

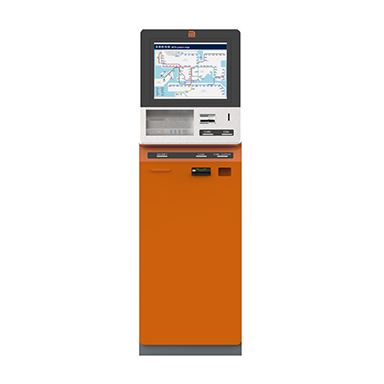

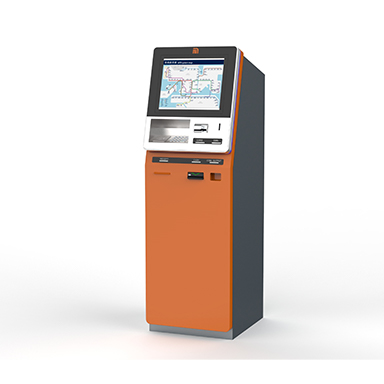

| Indoor Tickets Vending Machine | |
 Item
|
Description |
| Model | SC-TVM01 |
| IPC |
Industrial mainboard Intel@ Celeron@ J1900 clock speed 2G, Quad-core,TDP 10w DDR3L-1333 MHz 8G, SSD 256G |
| OS | Win 10 |
| Touch screen | 17 inch, 4:3, Acoustic screen, waterproof, dustproof, Anti-violence |
| Receipt printer |
Thermal printer Resolution: 203DPI x 203DPI Speed: 150mm/s Life time: 1 million lines Paper width: 80mm Paper diameter: 100mm |
| Banknotes acceptor |
Model: MEI SCN83, Acceptance Rate: 98% or greater; Transaction Speed: Approximately three seconds to stack; Cashbox Capacity : 1200 notes |
| Coins acceptor |
Brand: NRI Accepting coin type:max to 32 types Accepting speed：2 pcs/Sec Coin diamention：15-31mm Coin channels：5 |
| Card dispensor/ Bank Reader (Two in one) |
Support reading and writing Magnetic card: I S O / I E C 7 8 1 0 , 7 8 1 1 s e r i e s 7 8 1 3 ISO/ IEC 7 8 1 6 / 1 - 3； Contact IC chip card Protocol: Han dlin g (T= 0 an d 1 ) EMV'2 0 0 0 ve r 4 .0 c om plaian t； Contactless IC card: ISO1 4 4 4 3 type A/ B、 MF1 Card width: 53.92～54.18mm Card length: 85.47～85.90mm Card thickness: 0.76±0.08mm Normal capacity: 450 cards，3 card box，150 pcs card/box |
| Kaypad | Encrypted pinpad, stainless steel, 16 keys, PCI certifications |
| Communication | Ethernet, Wifi |
| DC Power supply | Output: 12V, 24V |
| Indicator light control board | 12V input, 12V output, 7 pcs LED indicating light |
| Operation indicating light | 7 pcs LED indicating lights |
| Door pening detecting sensor | Magnetic switch |
| Cabinet electric lock | 12V input, normal close, power on to open the door |
| Enclosure | waterproof, dustproof; steel plate, Surface sprayed powde; machanical lock |
| Package | Wooden box, EPE |
| Contactless card reader | Customized card reader |
