Outdoor TVM Configuration
Model	SC-TVM02
IPC	Industrial mainboard Intel@ Celeron@ J1900 clock speed 2G, Quad-core,TDP 10w DDR3L-1333 MHz 4G, SSD 128G
OS	Win 10
Camera	200M Pixel, 2cameras,1 for face monitor, 1 for banknotes and coins entrance monitor
Touch screen	17 inch, 4:3, Acoustic screen, waterproof, dustproof,  Anti-violence
Receipt printer	Thermal printer Resolution: 203DPI x 203DPI Speed: 150mm/s Life time: 1 million lines Paper width: 80mm Paper diameter: 80mm
Banknotes acceptor	Brand: Cash Code Model: CPI MSM-3005, Acceptance Rate： 96% or higher; Transaction Speed: Approximately three seconds to stack; Cashbox Capacity: 1000 notes
Coins acceptor	Brand: NRI, V2 Eagle, coin size: 15-31mm, 6 catogory channels
Coins dispenser	Brand: NRI  , mk4, capacity: about 1200PCS
Card dispensor	Support reading and writing IC & NFC card Card width: 53.92～54.18mm Card length: 85.47～85.90mm Card thickness: 0.76±0.08mm Normal capacity: 150 cards（support to extend to 500 pcs）
EMV card reader	Brand: Sanakyo
EPP	Encrypted pinpad
Communication	Ethernet, 3/4G, wifi
DC Power supply	Output: 12V, 24V
Lock of Safe box	UL291 standard electronic code lock, mechanical lock
Enclosure	waterproof, dustproof; 2mm steel plate, Surface sprayed outdoor powder;  Security box: 6mm steel plate
Package	Wooden box, EPE
Contactless card reader	Customized card reader

​

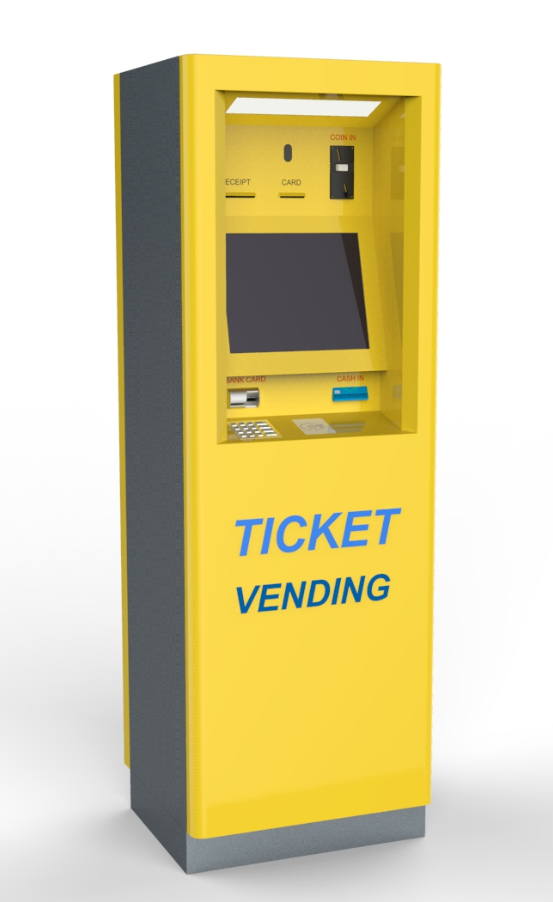

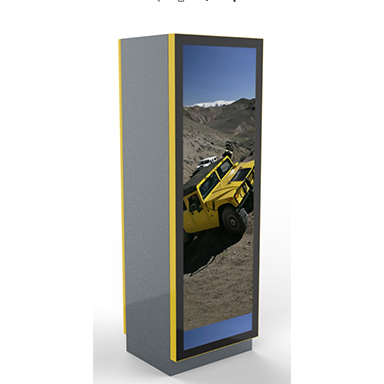

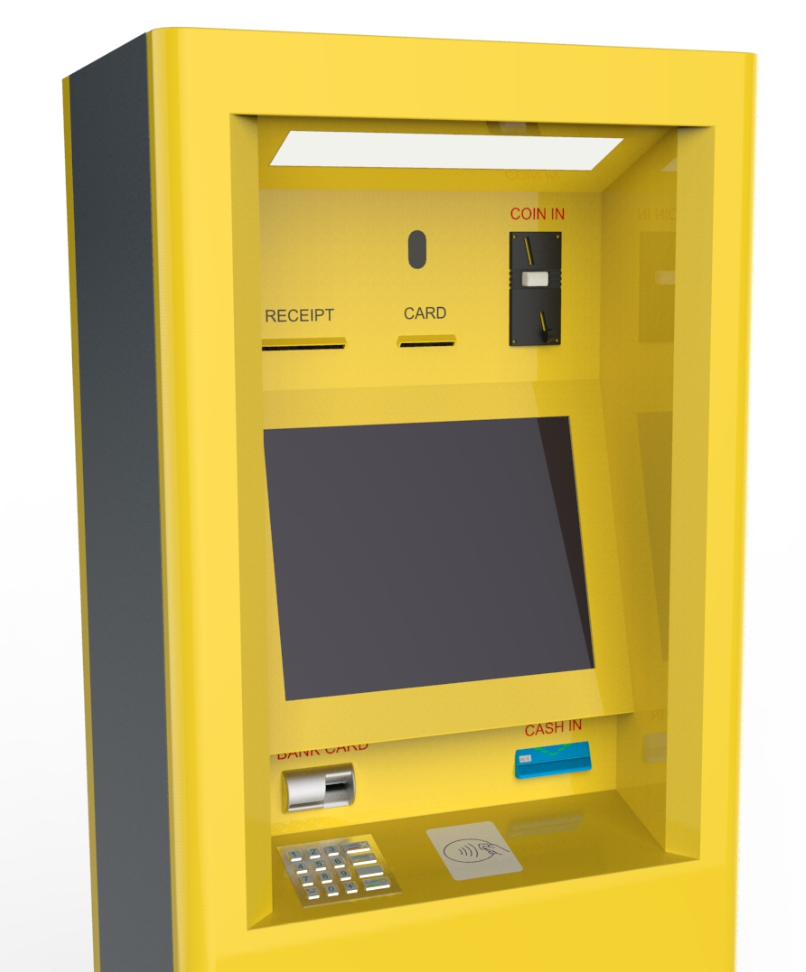

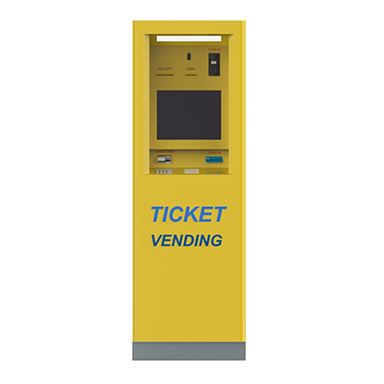

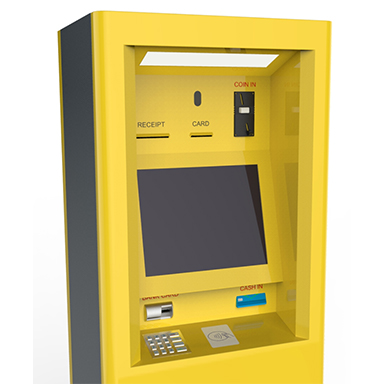

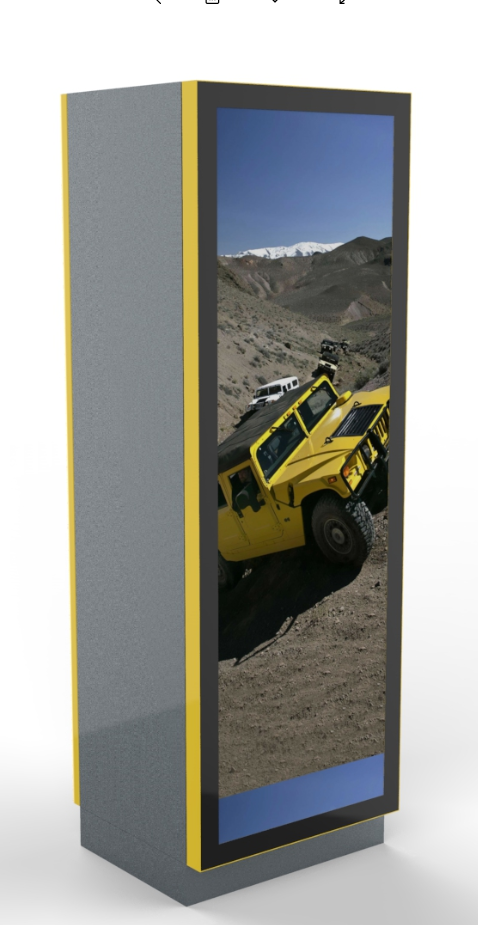

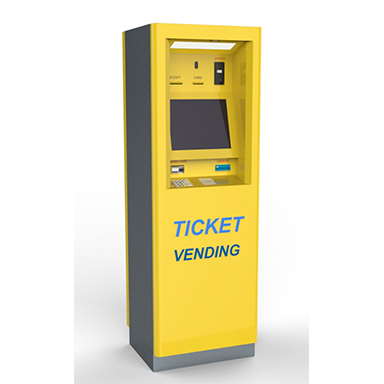

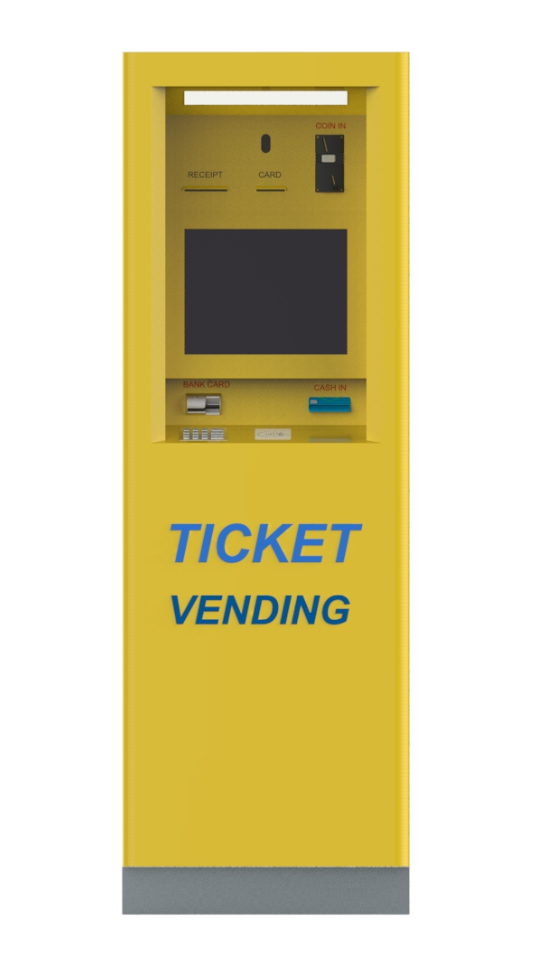

Product display
